Reference Guide for Lock Replacement
and Lock Exploded View Drawing



Kumahira Security Corp. Matrix for Safe Deposit Locks Replacement

Old Model

For 10mm
Door

For 12mm
Door

Existing Model

KD-73-01

*

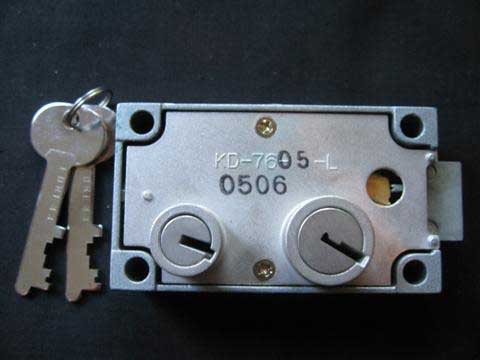

KD-76-05

KDC-73-00

*

KDC-76-04

*

KDC-76-00

*

KD-73-11

*

KD-76-12

*

KD-73-21

*

KD-76-20

KDC-73-20

*

Existing KD-76-05 & KD-76-20 locks are for 10mm door.

When replacing KD-73-11 or KD-76-12 lock with KD-76-05 lock, front noses sink 2.5mm from the door surface.



Bullseye Matrix for Safe Deposit Locks Replacement

Old Model

Existing Model

Bullseye B440 DLN

Sargent & Greenleaf 4440

Bullseye B431 DLN

Sargent & Greenleaf 4231

Bullseye B442 BLNL

Sargent & Greenleaf 4442





exploded_drawing

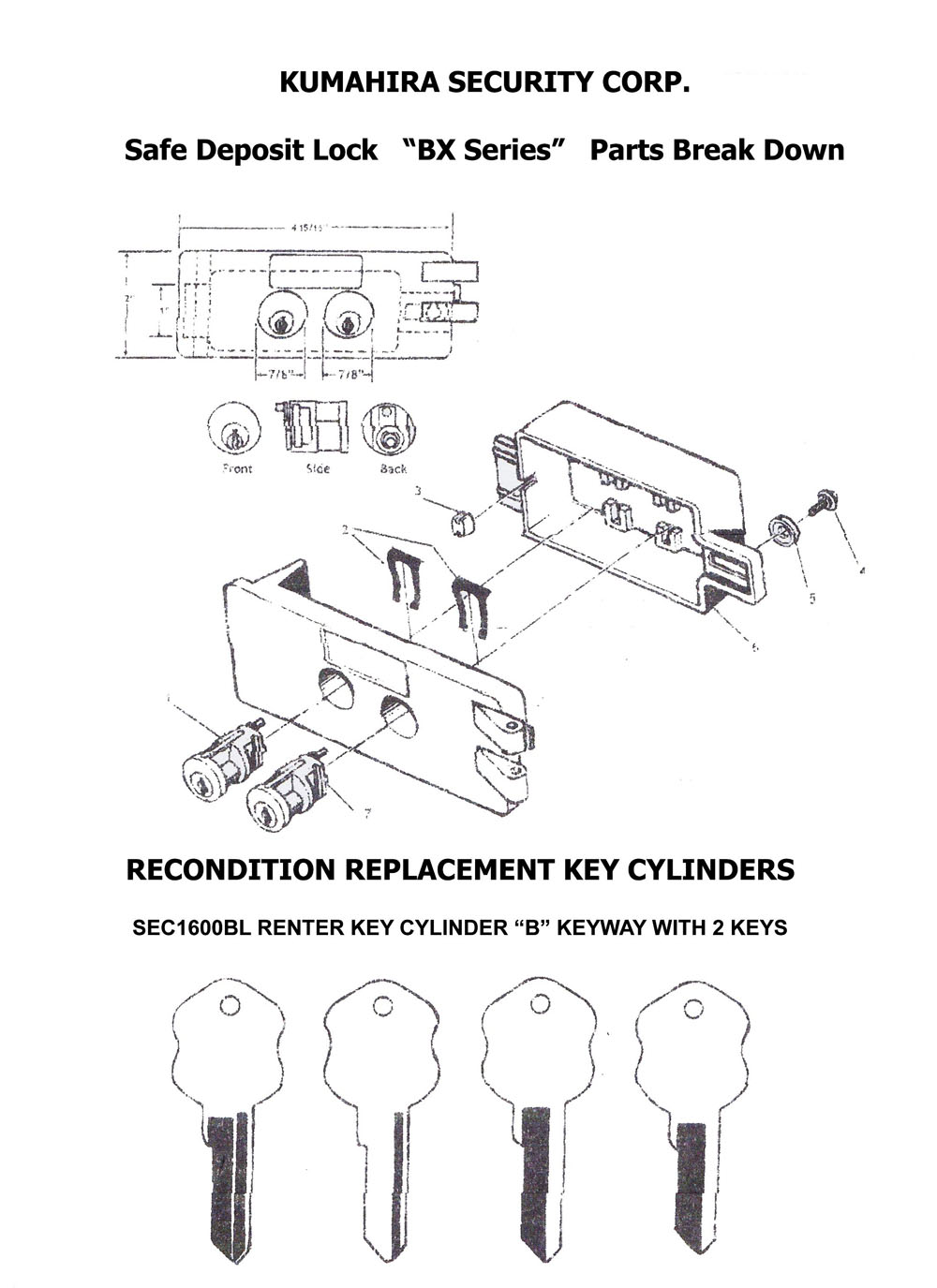

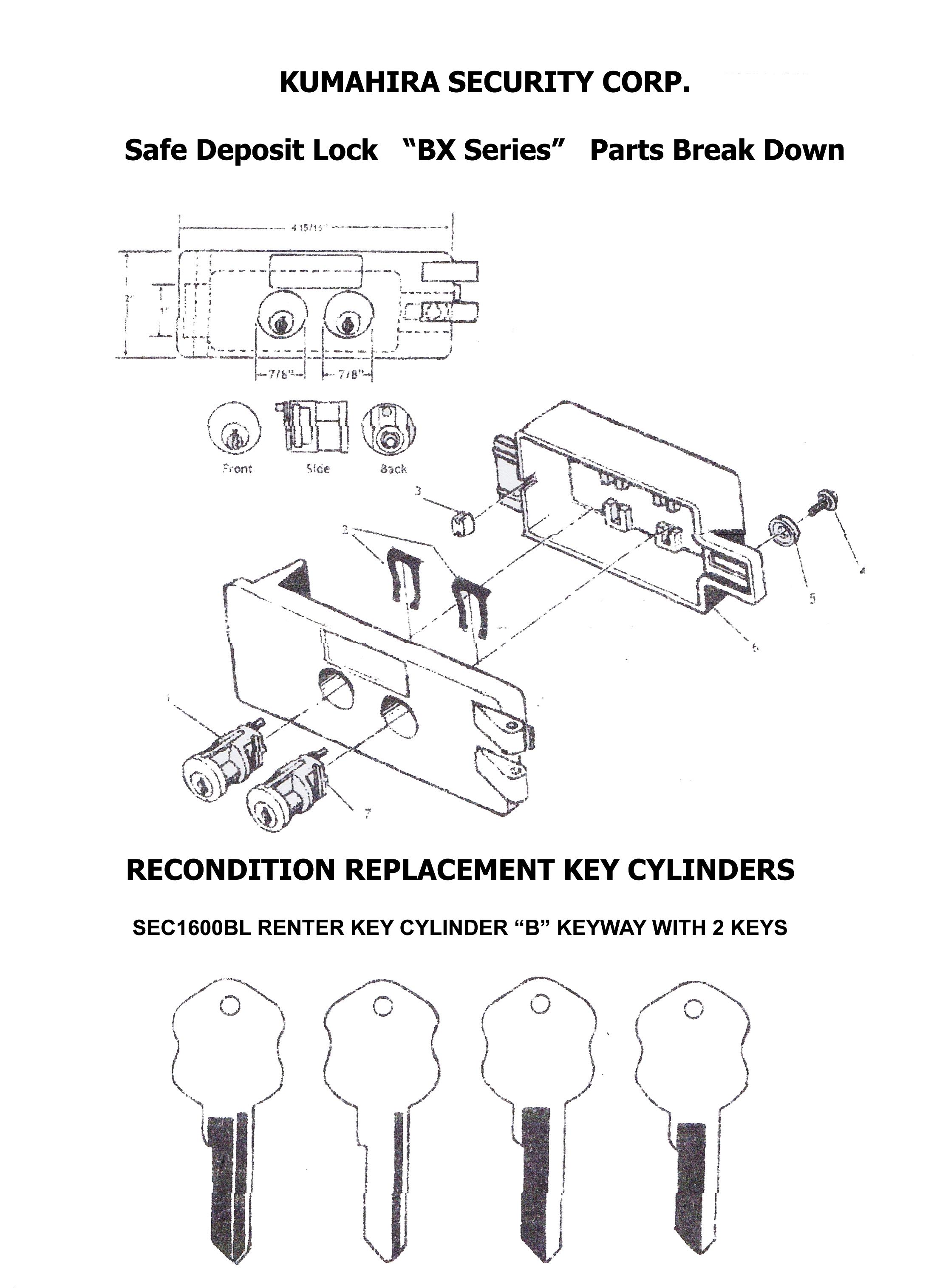

Kumahira Security Corp. BX Series Exploded View Drawing
(click photo to enlarge)
